Bonding Configuration (Auto Protection)

Bonding Configuration (Auto Protection)
1. Create Bonding Interface
2. Create Vlan Management
3. Assign IP for Management Vlan
4. Add Static Route for IP Management
5. Create Bridge and Add Port to Bridge

In this configuration we use RouterBoard CCR1036-12G-4S with firmware 6.44.3
1. Create Bonding Interface
    /interface bonding
    add mode=active-backup name=bonding1 primary="sfp1--(ACTIVE)" slaves=   "sfp1--(ACTIVE),sfp2--(BACKUP)" transmit-hash-policy=layer-2-and-3

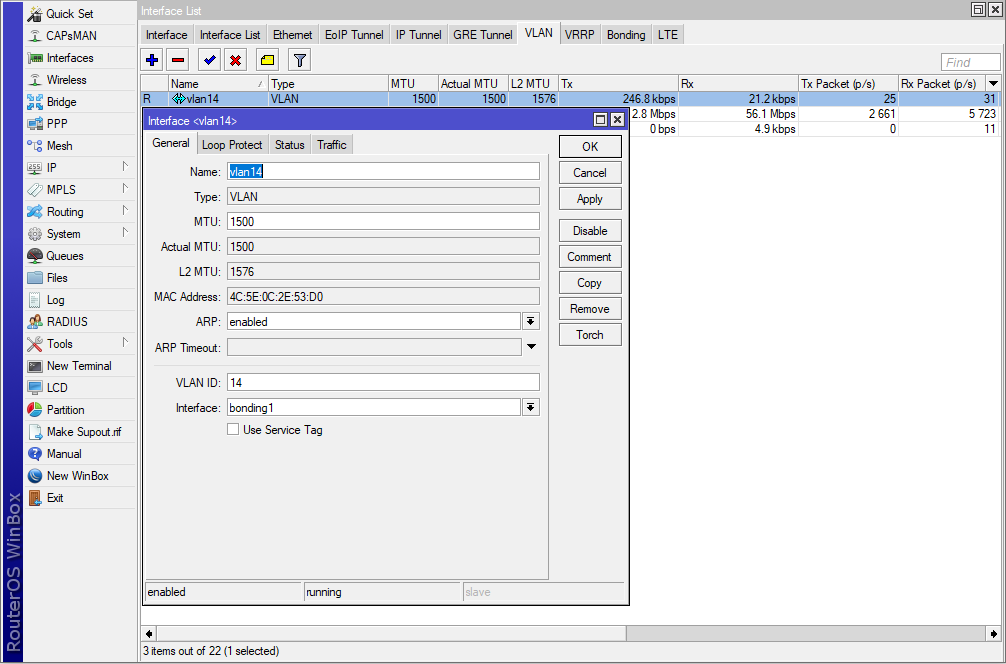

2. Create Vlan Management
    /interface vlan
    add interface=bonding1 name=vlan14 vlan-id=14
    add interface=bonding1 name=vlan102 vlan-id=102
    add interface=bonding1 name=vlan896 vlan-id=896

3. Assign IP for Management Vlan
    /ip address
    add address=10.14.1.99/24 interface=vlan14 network=10.14.1.0

4. Add Static Route for IP Management
    /ip route
    add distance=1 gateway=10.14.1.1

5. Create Bridge and Add Port to Bridge
    /interface bridge
    add name=bridge-v102
    add name=bridge-v896 protocol-mode=none



    /interface bridge port

    add bridge=bridge-v102 interface=vlan102

    add bridge=bridge-v102 interface="ether1-Holiday Palace (Room L1-88)_21059"

    add bridge=bridge-v896 interface=vlan896
    add bridge=bridge-v896 interface="ether2-Holiday Palace (Room L3-338)_21060"
