Mikrotik Router PPPOE Configuration

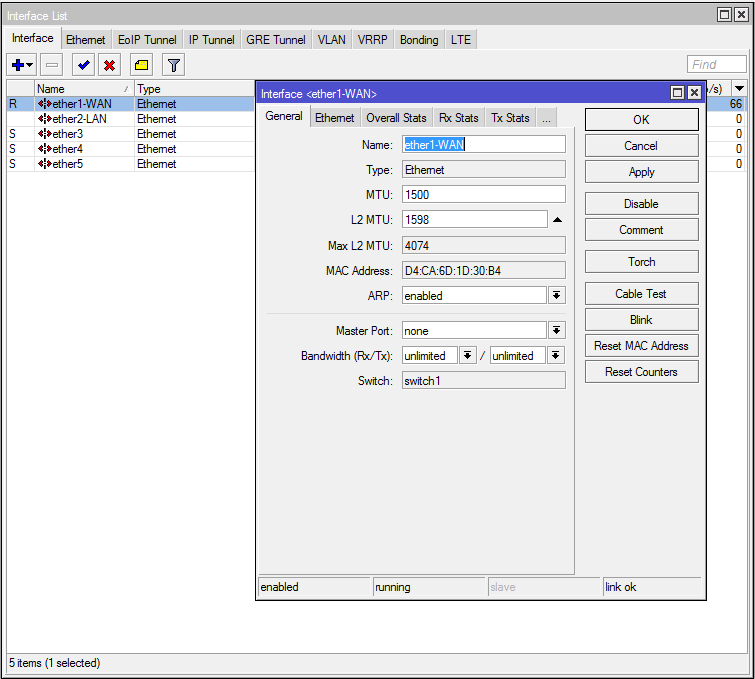

1. Comment Interface

    Interfaces > Interface (Tab) > ether1 (Double Click)

           +General (Tab)

                  -Name: ether1-WAN

    Interfaces > Interface (Tab) > ether2 (Double Click)

           +General (Tab)

                  -Name: ether2-LAN

2. Configure IP Address for LAN

    IP > Addresses > (+)

           -Address: 192.168.1.1/24

           -Network: 192.168.1.0

           -Interface: ether2-LAN

3. Dial Up PPPoE Client

    Interfaces > Interface (Tab) > (+) > PPPoE Client

           +General (Tab)

                  -Name: pppoe-out1 (Name_Of_PPPoE_Client)

                  -Interface: ether1-WAN

           +Dial Out

                  -User: user@internet (PPPoE_Client_User)

                  -Password:  pass@internet (PPPoE_Client_Password)

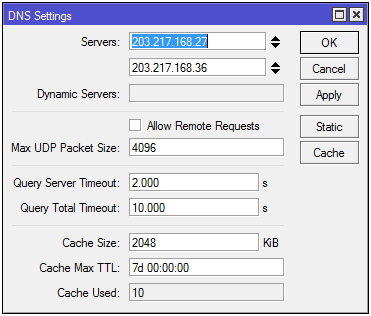

4. Configure DNS Server

    IP > DNS > Servers: 203.217.168.27

                                        203.217.168.36

5. Configure DHCP Server

    IP > DHCP Server > DHCP (Tab) > DHCP Setup > DHCP Server Interface: ether2-LAN >

           Next > Next > Next > Next > Next > Next > Next > OK

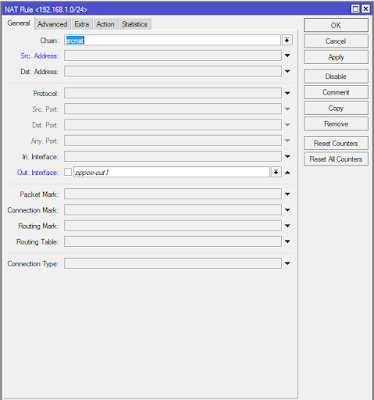

6. Configure NAT

    IP > Firewall > NAT (Tab) > (+)

           +General (Tab)

                  -Chain: srcnat

                  -Out. Interface: pppoe-out1 (Name_Of_PPPoE_Client)

           +Action (Tab)

                  -Action: masquerade

7. Add Port to Master Port

    Interfaces > Interface (Tab) > ether3 (Double Click)

           -Master Port: ether2-LAN
